If you work on smartphone motherboard repair, SMD PCB rework, or electronics soldering, picking the correct C245 soldering iron tip (soldering cartridge) directly affects your soldering quality and work efficiency.
C245 series replacement tips are compatible with the T245 soldering handle, widely used by electronics repair technicians for micro soldering jobs. There are 6 common profiles: K, SK, I, IS, 2C and 3C. Each tip shape is designed for specific soldering tasks.
In this guide, we break down every C245 tip type, their features, suitable applications, so you can quickly select the right soldering cartridge for your PCB repair work.

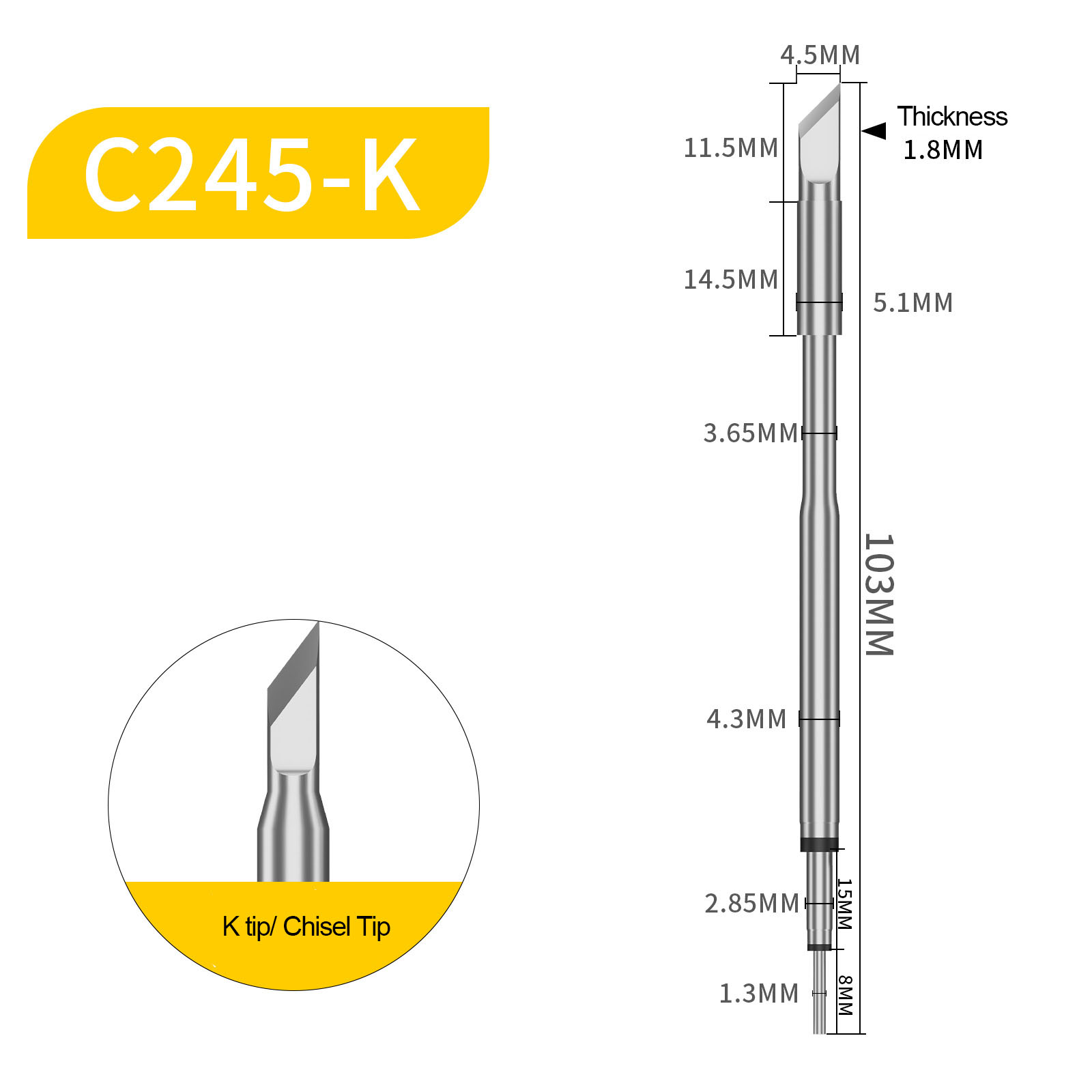

Key Feature: Wide chisel-shaped blade. Best Soldering Method: Vertical soldering and drag soldering. Recommended Use Cases Perfect for SOJ, PLCC, SOP, QFP IC packages, power and ground components. The chisel blade is ideal for fixing solder bridges and soldering connectors on phone motherboards. When you need drag soldering on multi-pin SMD ICs, the C245 K chisel tip is your go-to choice.

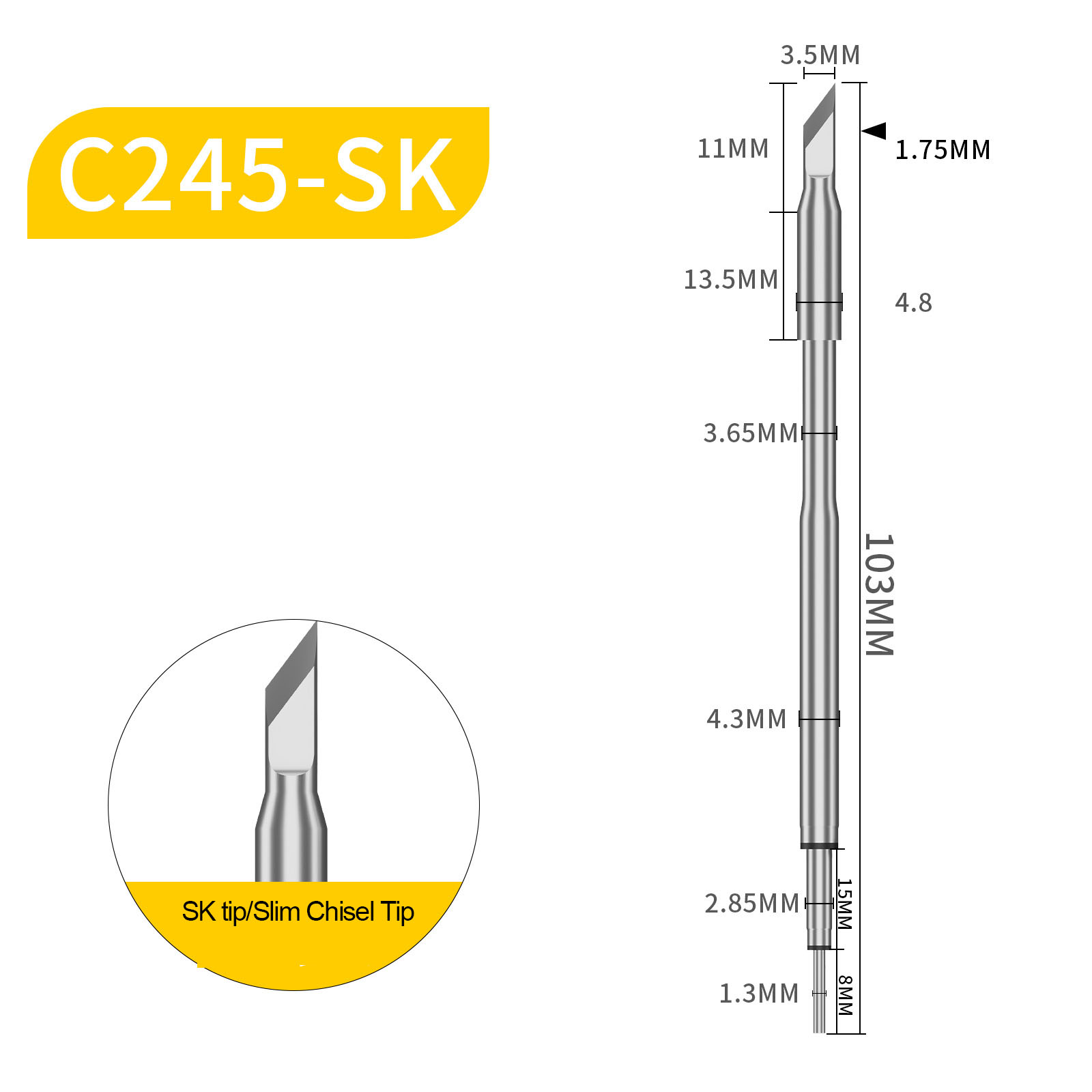

Key Feature: Slim, narrow chisel blade, thinner than standard K tip. Recommended Use Cases Designed for drag soldering in limited PCB areas. It keeps the advantages of chisel tip while fitting tighter spaces. Great for SOP/QFP IC rework where standard K tip is too wide. Popular among mobile repair technicians working on dense phone motherboard circuits.

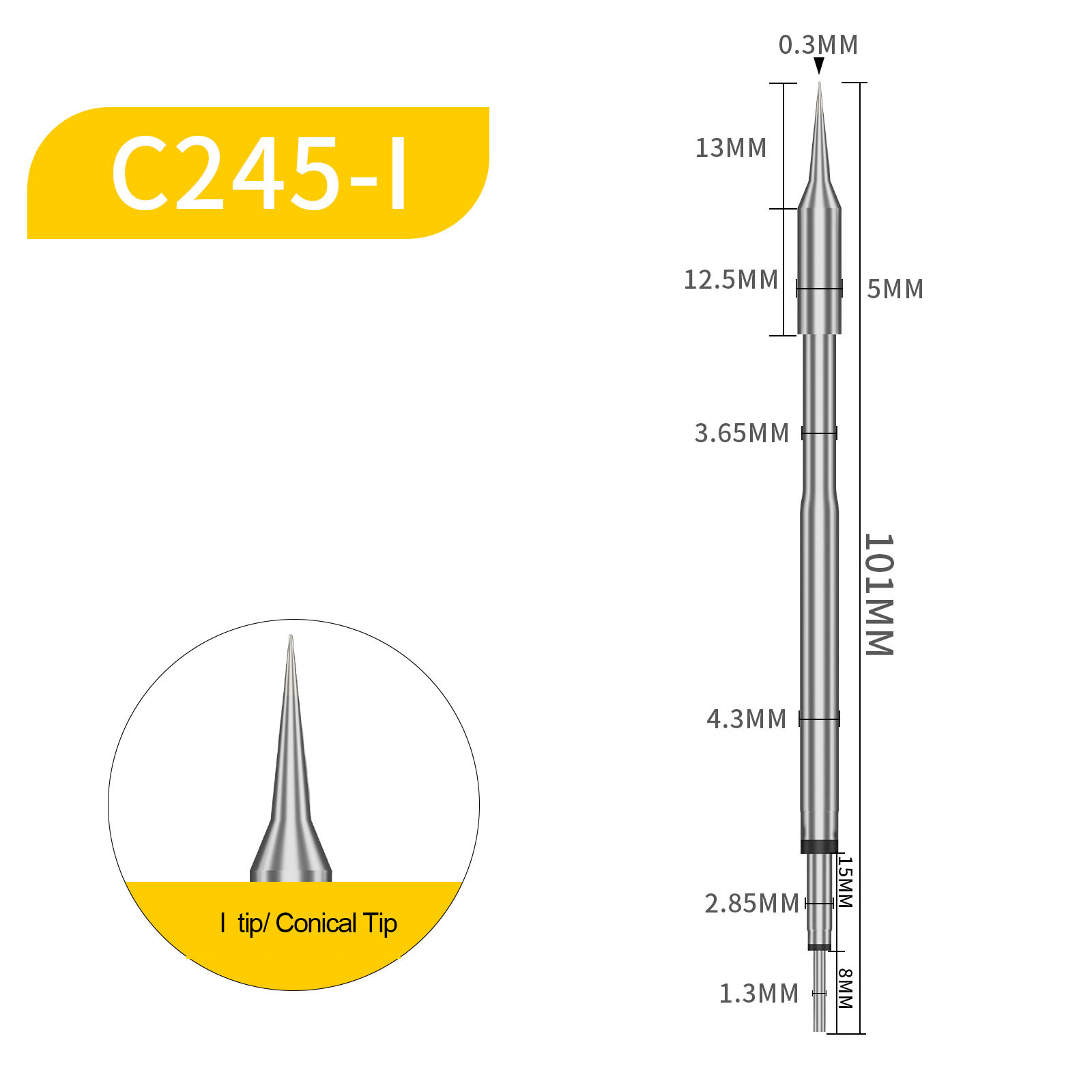

Key Feature: Tapered conical fine point. Recommended Use Cases For precision fine soldering tasks. Use this tip when your working space is narrow and tight. It works excellent to remove and repair solder bridges generated during IC chip soldering. Suitable for small discrete components and pinpoint soldering jobs.

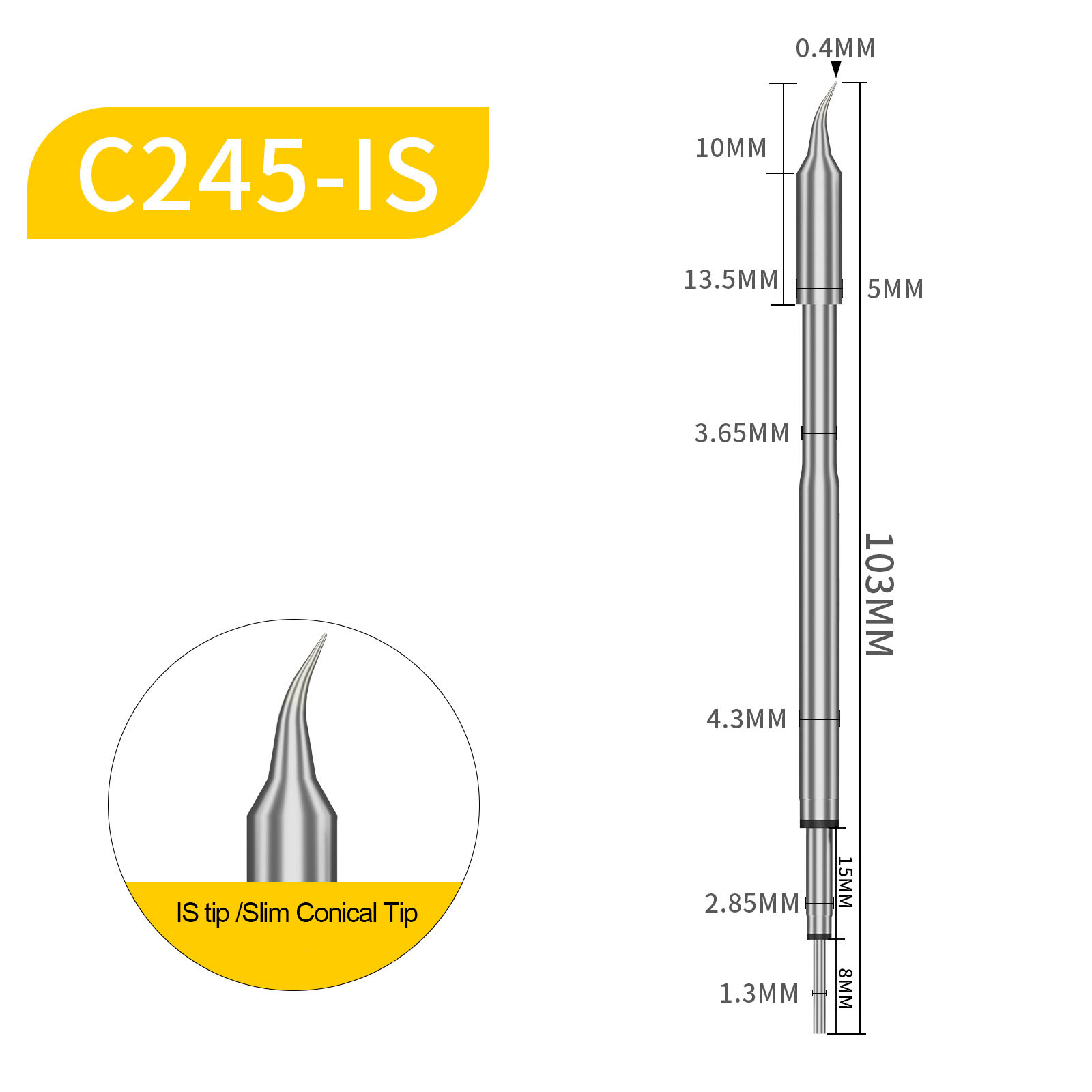

Key Feature: Extra slim, tiny conical point, finer than I tip. Recommended Use Cases The best tip for ultra-fine micro soldering on compact smartphone PCBs. Ideal for tiny SMD components, pinpoint repairs, and fixing delicate solder bridges where even the standard conical tip is too large. Must-have for advanced phone motherboard micro rework.

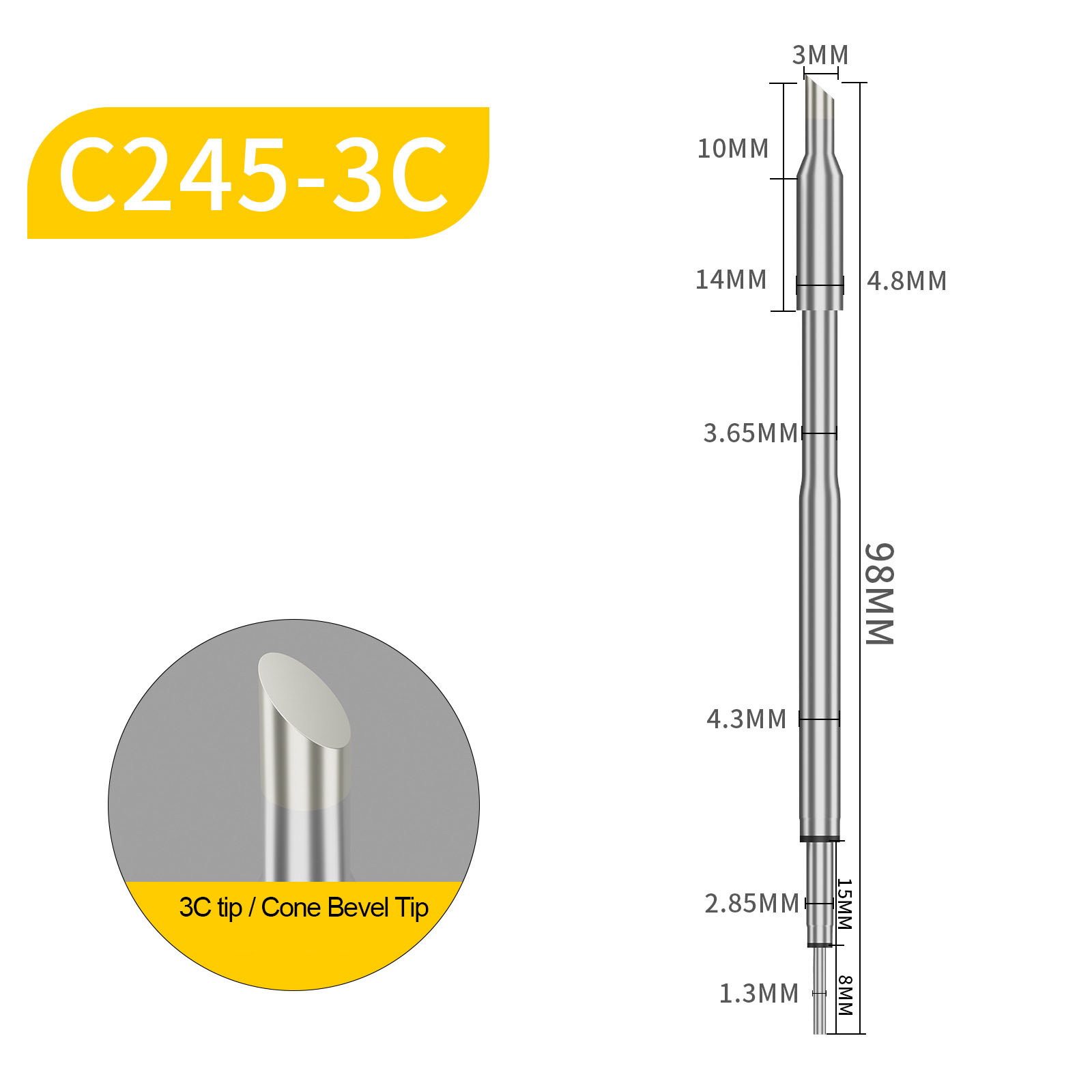

Key Feature: Sloped bevel front surface, can carry a larger volume of solder. Recommended Use Cases Pick 2C /3C bevel tip for jobs requiring high solder volume. It is suitable for large soldering areas, thick terminals and big solder joints. If you need to solder heavy ground pads or large connectors on PCB, the bevel tip will transfer heat faster and hold more solder.
