Custom Made SMT Stencil SMD Stencil PCB Stencil PCBA  Solder Stencil BGA Stencil

Click it, watch the video on youtube.

Support Formats : PCB /GERBER/CAD/GBR/CAM/DXF File
ATTENTION :Please contact us on line firstly before you place the order !!

Different Sizes For Your Choices, Contact Us To Tell Your Needs:
37*47cm Stencil and come with frame
42*52cm Stencil and come with frame
55*65cm Stencil and come with frame
584*584mm Stencil and come with frame
736*736mm Stencil and come with frame
40*60cm Stencil and come with frame
40*80cm Stencil and come with frame
15*20cm Stencil only , without frame
If you need other size, feel free to tell us please.    :)



PCB SMT stencil is for accurate solder paste application

Stencil is also called SMT Stencil, a specific mold for SMT. PCB stencils help to apply solder paste to PCB boards during the reflow soldering process, to transfer the exact amount of solder paste to the exact location on the circuit boards. The stencil is placed on the surface of the PCB and then the solder paste is applied.



PCB stencils are usually created from the same design files with manufacture the PCB. If using the Gerber file, the Top Paste (.GTP) and Bottom Paste (.GBP) files will be used.

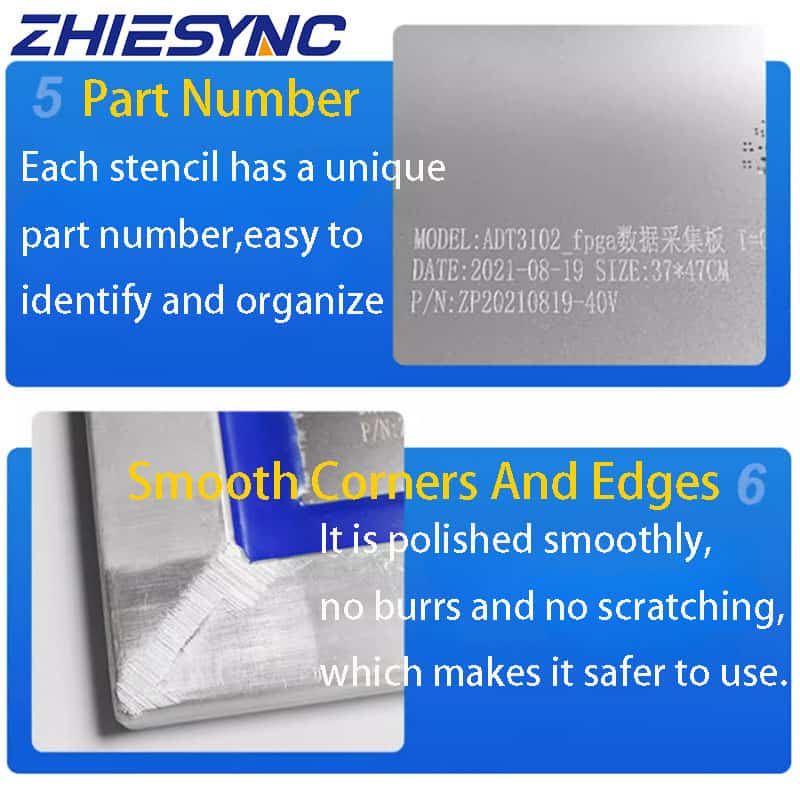

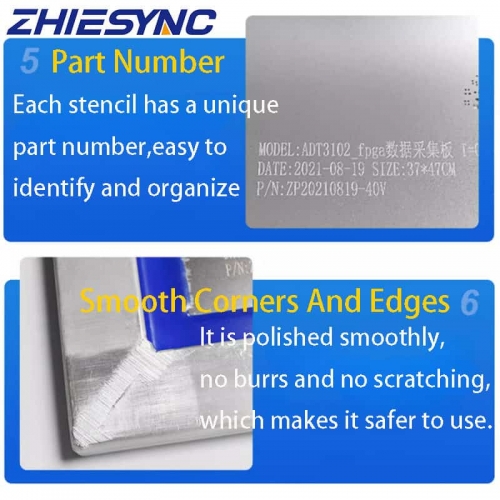

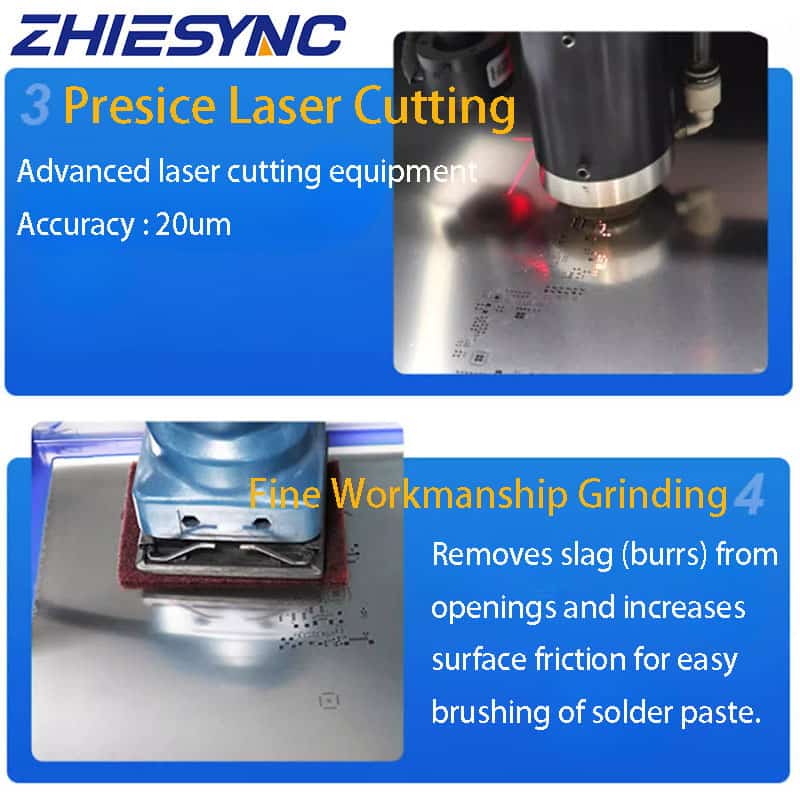

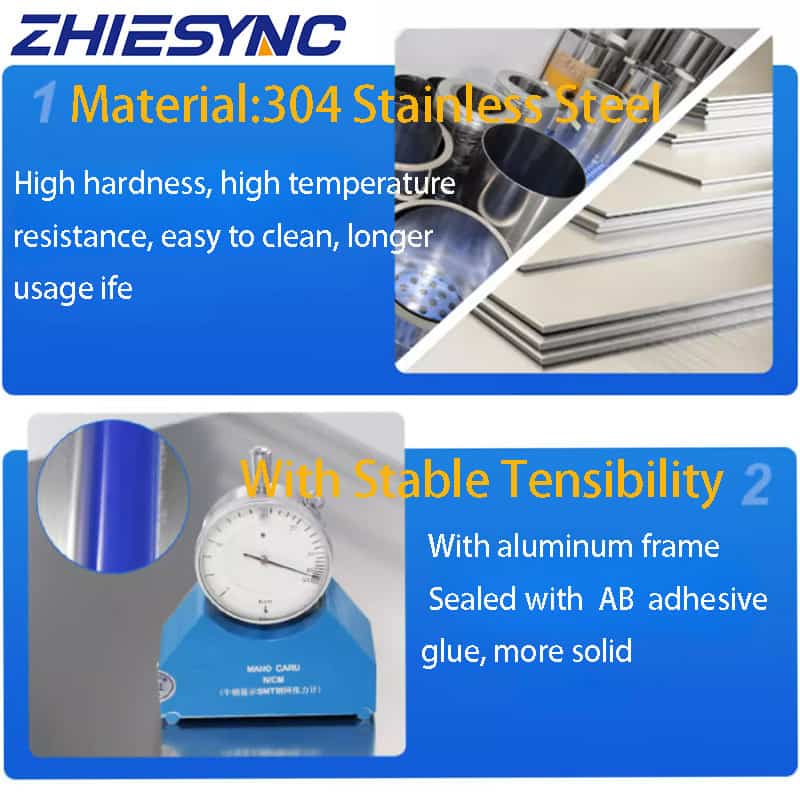

The original stencil was made of iron / copper, but later stainless steel replaced them, which is now the stencil (SMT Stencil). According to the production process, the SMT stencils can be divided into: Laser Stencil, E.P. Stencil, E.F. Stencil, Step Stencil, Bonding Stencil, Ni.P. Stencil and Etch Stencil. Stencil production processes are: chemical etch, laser cutting, electroform.

The thickness of the stencil determines the paste density. The typical thickness includes 0.12mm and 0.15mm.



WARM TIPS:

1：THICKNESS

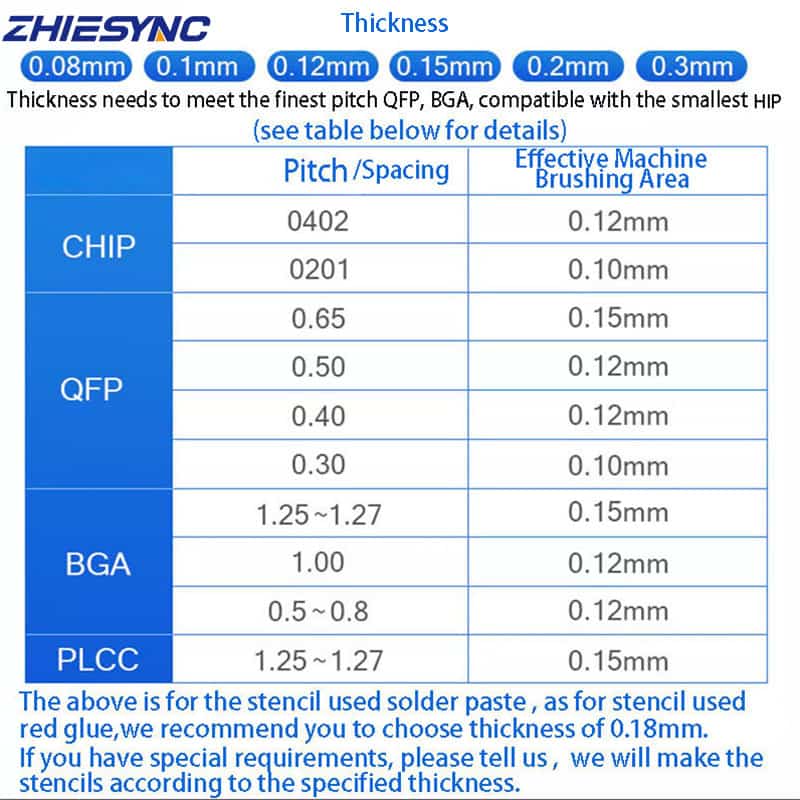

Stencil thickness: 0.1/0.12/0.13/0.15/0.18mm for your choice, special thickness: 0.2-0.3mm.

Usually the denser the IC tube, the thinner the stencil, we usually use 0.1-0.15mm.

Please specify the thickness before you buy it.  we can produce according to the specified thickness.

2: FILES FORMATS

Please send us files in the following formats:PCB,GERBER,CAD,GBR CAM, DXF Confirm the files/PCBs provided are correct.

We produce stencil for solder paste usually, if you want stencils for red glue, solder balls etc. contact us please.

3 : SIZE

In case to choose the right size of stencils, please confirm with us the stencil is used in semi-automatic or fullyautomatic tin scraping

machine, let us know the size of circuit boards.

The smallest size we recommend you to choose is 42cm * 52cm.

4: MUST CONFIRM CLEARLY FIRSTLY BEFORE YOU PLACE THE ORDER

Stencils are special customized products,we don't accept to return it or

refund without any proper reason.

We will ship out AS SOON AS POSSIBLE.

lf you have questions about the product, please tell us before you place the order,

thanks for your cooperation and understanding.

5: PRICE

The final price is subject to the result of communication with us

HOW TO BUY IT?

1) Contact us on line firstly.

2) Send us files (Support Formats : PCB /GERBER/CAD/GBR/CAM/DXF File )

3)Tell us your needs, we create an proforma invoice.

4)Confirm the files and everything is no problem.

5) You can send payment via bank transfer, or credit card to us according to the value marked on proforma invoice.

6) We arrange production of stencils.

7) We send it by air  (door to door shipping )
